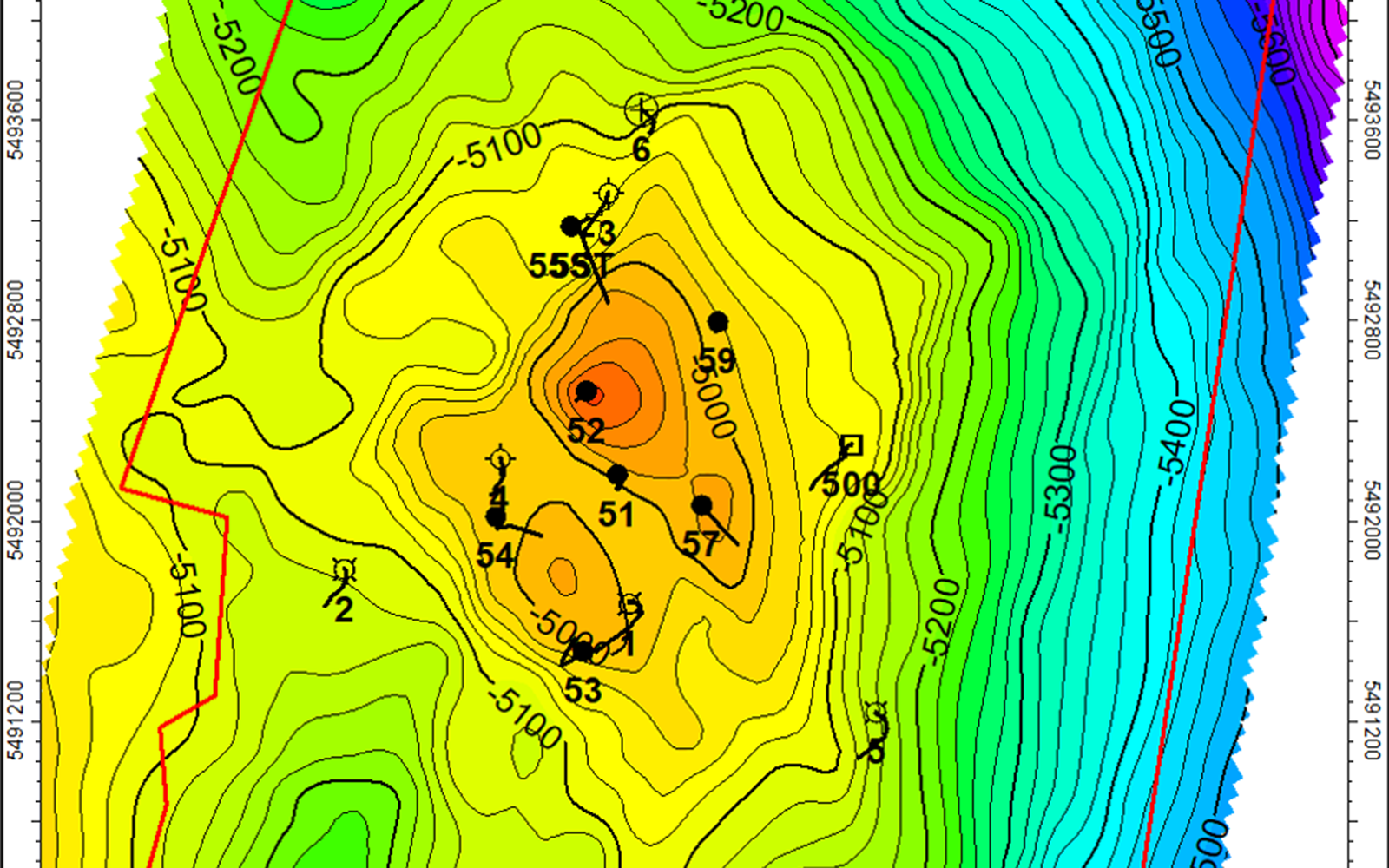

Diagram of a Depth Structure of Carbonate Reservoir for DTEK seismic project

Vertical seismic profile survey solves subsurface mystery for DTEK

ON THIS PAGE
Contact us

When a surface seismic survey delivers an unexpected result, what do you do - especially when the answer could significantly impact your drilling plans?

Our client needed to understand why the interpretation from a surface seismic survey of the top carbonate reservoir in the area of the M-55 well showed a very steep northern edge to the top carbonate, where geologically a gradual ramp had been expected.

To answer their question, RPS defined, designed, and delivered a series of vertical seismic profile (VSP) surveys to meet the technical challenges and provide the data and analysis needed for DTEK to make an informed decision.

Project name

Collaborative VSP aquisition

Client

DTEK Oil and Gas (DTEK)

Location

Ukraine



Services provided

Survey definition and planning

Pre-survey modelling

3D modelling

Technology  and equipment selection

Acquisition quality control

2D seismic processing (Vp and Vs)

The Machukhske oil and gas field

Machukhske is an oil and gas field in the Poltava region of Central Ukraine, located around 300km south-east of Kyiv. The main reservoir is a lower carboniferous ramp carbonate. It is very deep at greater than 5km and is high pressure and high temperature with bottom hole temps between 160-170 C.

Before the Machukhske M55 well, 10 wells had been drilled on the field and 3 in production. Currently they have drilled 14 wells, 7 of which are currently producing and the others were plugged and abandoned (all wells were logged, tested and cored).

The challenge

The main challenge for DTEK was that the interpretation from surface seismic of the top carbonate reservoir in the area of the M-55 well did not fit with the expected geological model. The surface seismic showed a very steep northern edge to the top carbonate, where geologically a gradual ramp had been expected. If the steep northern edge was correct, it would strongly impact future drilling targets and well planning. To make informed decisions, DTEK needed a better understanding of their subsurface geology.



Defining the objectives

The objectives of the survey included high resolution imaging along the top carbonate; obtaining accurate well-tie and velocity information at the well, including shallow velocity control to surface; and to record the amplitude variation with offset or AVO response of the top carbonate.

With these objectives in mind, RPS’ geophysicists performed pre-survey modelling, validating what is realistically achievable and optimising where possible. The VSPs were planned to provide high resolution imaging along the top carbonate to the north of M55 to resolve the conflict between the surface seismic image and expected geology. Securing shallow velocity control points for both Vp and Vs velocities would provide added value over legacy surveys.

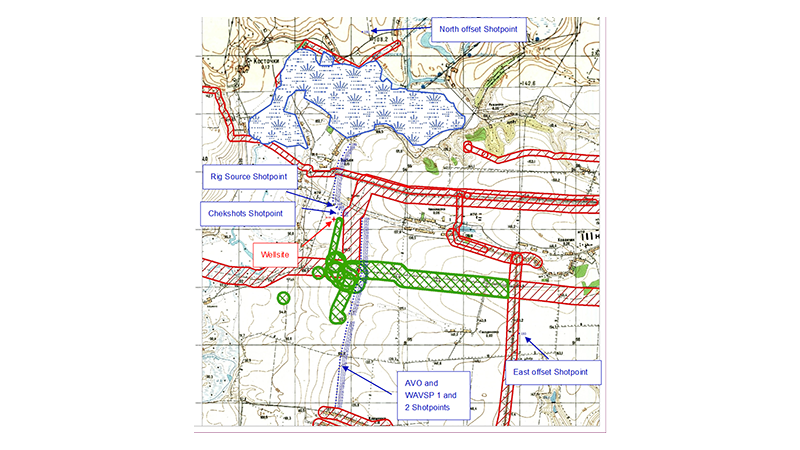

seismic plan.jpg

Innovation in the planning stage included the recommendation of Avalon Sciences Geochain downhole equipment. This equipment consisted of a longer 12-level geophone array, rather than the 2-levels used on legacy surveys, which had standard 3-component geophones and a Gamma Ray included on the tool string. The longer array increased operational efficiency and provided more VSP data per unit time. RPS also recommended that different source locations be shot in one survey where possible, rather than every survey being acquired separately. This process is known as a flip-flop VSP, and can drastically reduce operational time.

During the survey planning stage, a unique collaboration of experienced VSP, wireline and seismic specialists were brought together. Each member of this group had key equipment and experience to complement and improve the VSP surveys. RPS delivered pre-survey modelling, planning and onsite quality control (QC).  Downhole equipment from Avalon Sciences was hired, and Weatherford furnished the wireline. VSProwess provided software, modelling support and data processing. Also included in the team were local contractor surveyors with Vibroseis trucks.

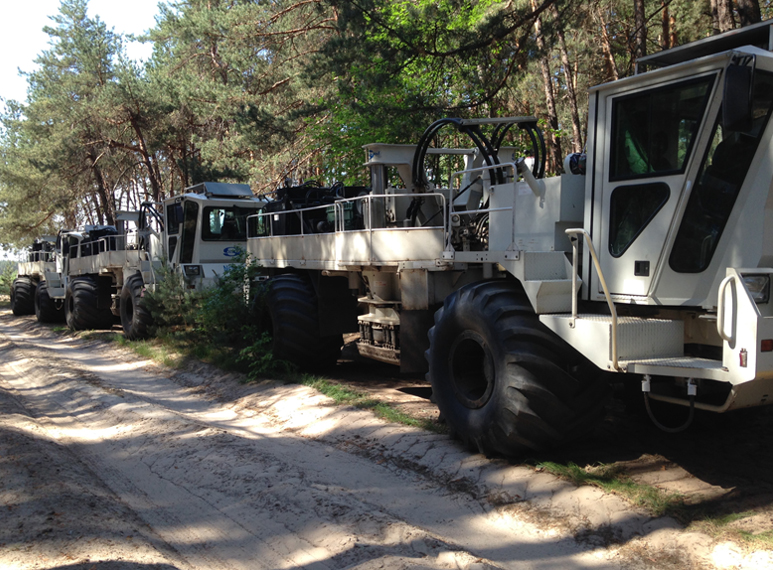

Vibrose trucks on DTEK seismic project

Making use of extra rig time, DTEK also added two additional imaging objectives. New real-time modelling in the UK incorporated the field constraints and additional objectives and fed back information to the field team in Ukraine.

RPS’ QC specialists sent the data to VSProwess for processing on completion of the acquisition and QC. Processing was successfully completed within a short turn around time. Several advanced deliverables were produced, including high-resolution 2D seismic images (both Vp and Vs), local Vp and Vs velocities and well tie extending to surface.

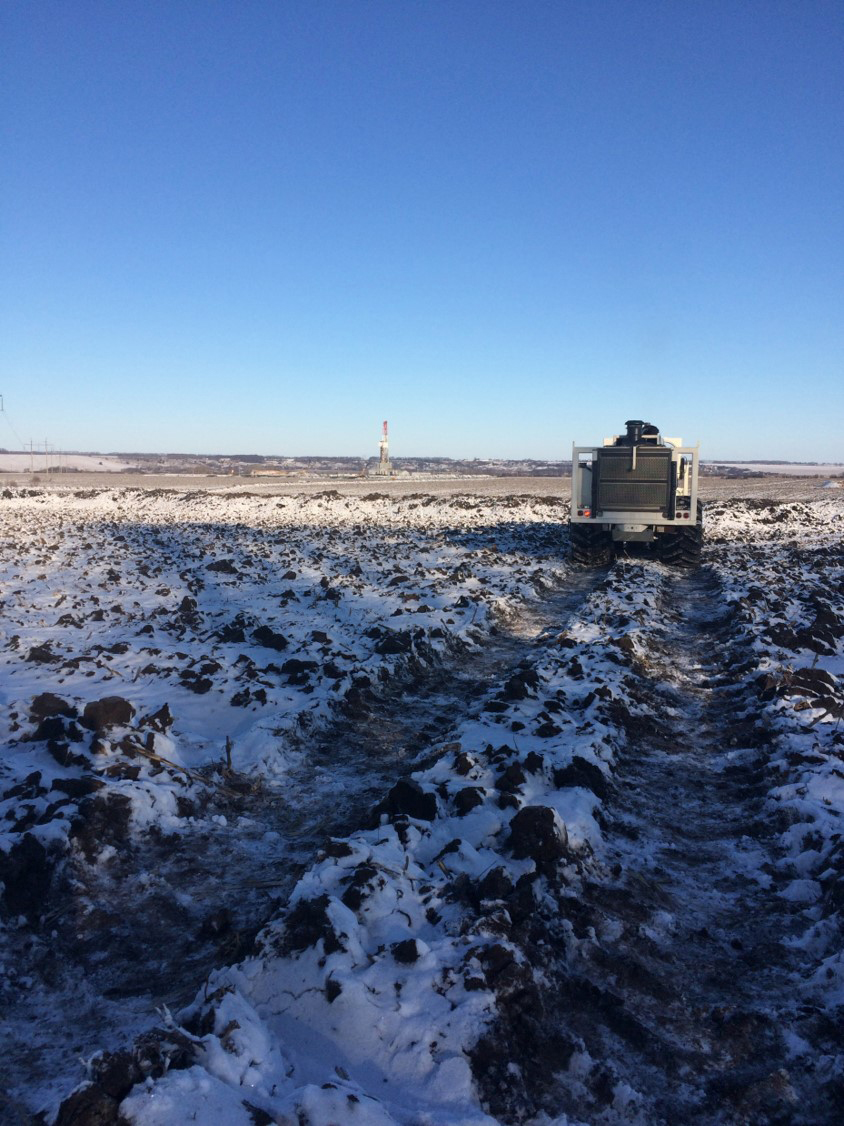

rough terrain fo vibrose trucks on DTEK seismic project

What the data revealed

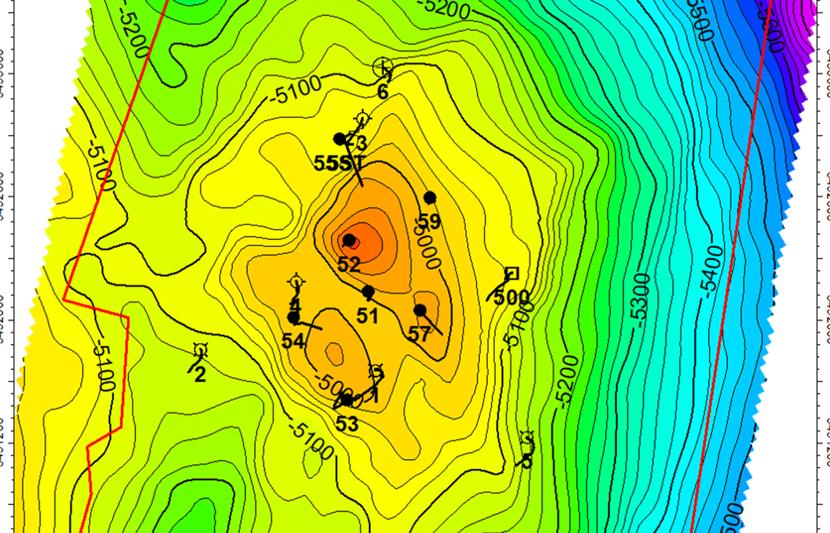

The data revealed a gradual dipping of the northern flank of the structure. Compared to the surface seismic which indicated a steep northern edge of the top carbonate structure, it resolved the geological dilemma related to the depositional model of the field. With the updated geological model, DTEK  re-assessed the plan to drill to the North of M-55, essentially preventing drilling a dry well, saving significant cost. The comparative cost to running the VSP surveys versus drilling a dry well is significant.

Additionally, the VSP data was used to assist the inversion of the surface seismic. Parameters derived from the inversion, allowed adjustments to be made to proposed well trajectories improving flow rates.

Seismic graphic

Delivering on our client’s seismic goals

We delivered a flexible, cost-effective and successful solution that resulted in an updated geological model. Based on the improved model, DTEK avoided drilling a dry well, and made adjustments to proposed well trajectories which resulted in improved flow rates.
