HF Radar and Offshore Wind: A Complex Interaction

The global shift towards renewable energy sources has led to a remarkable surge in offshore wind energy development. Harnessing the power of wind over open waters presents significant advantages, including higher wind speeds and reduced visual impact. However, this transition is not without its challenges. One of the most intricate hurdles faced by offshore wind projects is the mitigation of High-Frequency (HF) radar interference.

High-Frequency radar systems are crucial tools in maritime surveillance, monitoring ocean currents, weather patterns, and ship movements. These systems operate within the 3-30 MHz frequency range and rely on the reflection of radio waves off the ocean's surface. Their ability to provide real-time data has made them indispensable for safe navigation, pollution control, and search and rescue operations.

Offshore wind farms can inadvertently interfere with HF radar signals. Turbine blades, substructures, and other components can reflect and scatter the radar waves, creating false echoes and reducing the radar's operational accuracy. This interference not only impacts the radar's intended functions but also raises concerns about maritime safety and navigational risks.


Challenges in HF Radar Mitigation

  • Signal Reflection and Attenuation

    The physical presence of wind turbines in the radar's line of sight causes signal reflection and attenuation. This interference distorts the radar's ability to accurately detect targets, potentially leading to missed or misinterpreted data.

    01 /05
  • Data Quality and Accuracy

    Wind farms near HF radar installations can degrade data quality and accuracy. This poses a challenge for maritime authorities and researchers who rely on high-quality radar data for weather forecasting, ocean modeling, and environmental monitoring.

    02 /05
  • Navigational Safety

    Accurate maritime radar data is crucial for ensuring navigational safety, especially in busy shipping lanes and near critical infrastructure. Interference from wind farms raises concerns about collision risks and maritime accidents.

    03 /05
  • Regulatory Compliance

    Many countries have regulations and standards in place to ensure the proper functioning of HF radar systems. Offshore wind projects must navigate these regulations while optimizing their energy output and operational efficiency.

    04 /05

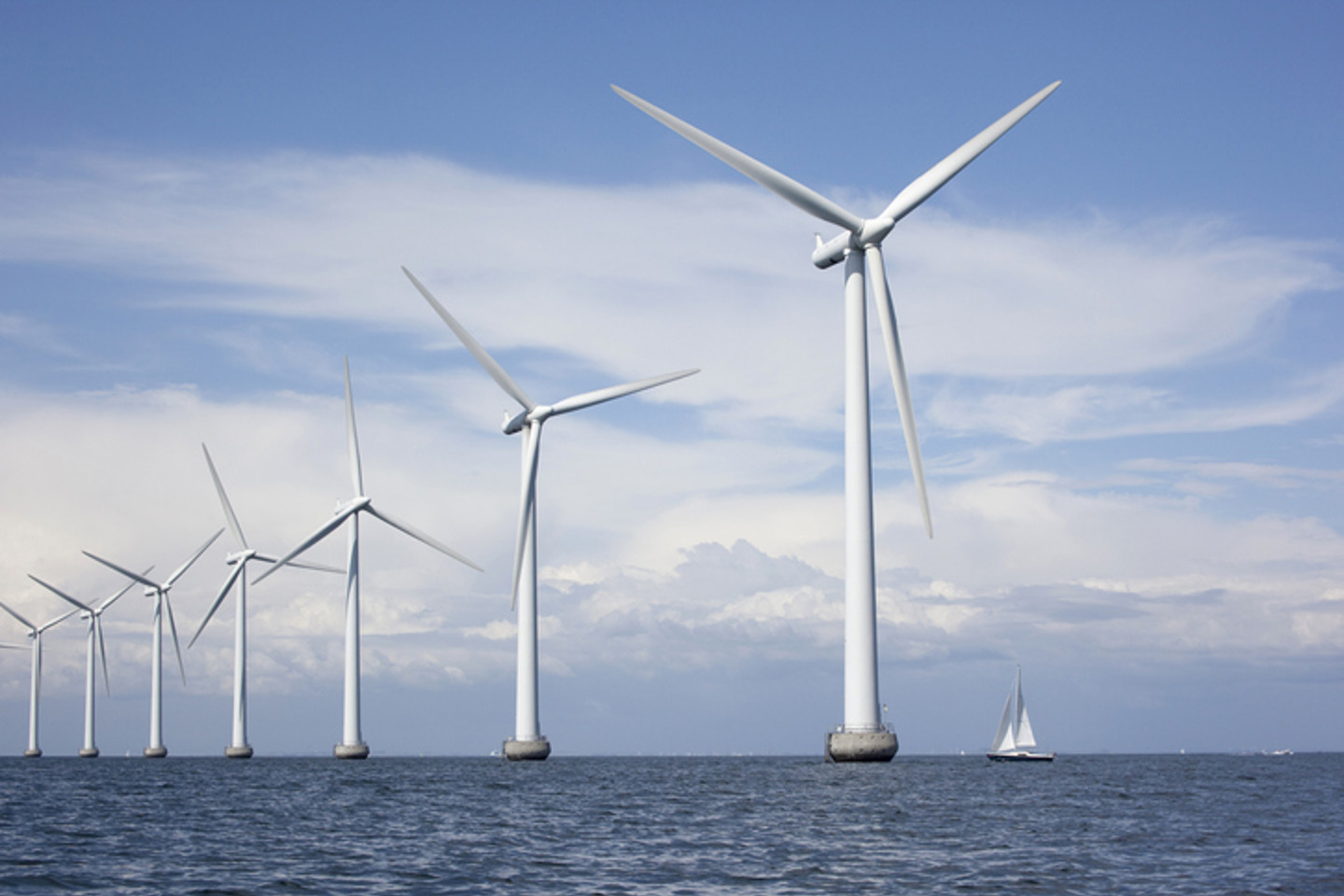

    GettyImages-157475904 (1).jpg
  • Siting and Design Considerations

    To mitigate HF radar interference, careful consideration of the siting and design of offshore wind farms is necessary. This involves optimizing turbine layout, heights, and spacing to minimize radar disruption.

    05 /05

Mitigation Strategies

Several strategies can help mitigate HF radar challenges in the context of offshore wind development:

  • Advanced Radar Technologies: Research and development of radar systems with enhanced signal processing capabilities can help mitigate interference and improve data accuracy.
  • Radar Network Optimization: Integrating multiple radar installations into a network can provide redundancy and improve overall coverage, compensating for potential gaps in data caused by wind farm interference.
  • Siting and Layout Optimization: Offshore wind farm developers can work closely with radar operators to select optimal locations and turbine layouts that minimize interference while maximizing energy production.
  • Antenna Design: Wind turbine manufacturers can explore antenna design modifications that reduce radar wave reflection and scattering, thus minimizing interference.
  • Collaborative Approach: Collaboration between wind farm developers, radar operators, maritime authorities, and research institutions is vital to finding effective solutions that balance the growth of offshore wind energy with the needs of maritime safety and radar functionality.

As the world embraces the potential of offshore wind energy, the challenges posed by HF radar interference must be addressed with innovation, collaboration, and meticulous planning. Striking the right balance between sustainable energy development and navigational safety requires a multifaceted approach that leverages advanced technologies, regulatory compliance, and the expertise of various stakeholders. By navigating these challenges thoughtfully, the offshore wind industry can continue to flourish while safeguarding the integrity of maritime radar systems.

QWhat can we provide?

In the areas where HF Radar is being impacted by wind turbines, RPS would install a network of buoy systems that would monitor waves and currents and report in real time. Our approach would be to use a readily available, widely recognized, industry standard series of buoys that have great track records with well documented data around the wind farm at the four cardinal points and one in the center. The buoys would be serviced every 6 months with data available in real time flowing into the IOOS data portals to supplement the impacted data by the radar systems.

QWhy choose RPS?

RPS is a full service met ocean company that has been installing moorings and buoys throughout the world for the past 50 years. We are familiar with the process of installing buoys, the challenges, and how to put together a robust, reliable network of buoys. RPS is highly experienced in monitoring and verifying that data quality in a real time basis.

QWhat differentiates us in the market?

We offer a turnkey service from the design of the system to the acquisition, installation, and maintenance of the system. Then, dealing with the data, getting that data from the buoys into a database, then providing QA/QC of that, and then onto a UI platform such as the IOOS data portals and OceansMap. We are working extensively in the offshore wind market and understand the importance of this type of data and the safety and challenges of performing the work in accordance with the safety requirements of the industry.

QWhy is this the best option?

This buoy approach works well, especially during the construction phase. We think there is potential to do something fixed on the actual structures, once they are moving operations. This would be the initial approach and then once the build out is complete, there may be some opportunities to install alternative systems on the platforms at a lower cost. The buoys would be installed in a phased approach depending on where they are in the construction and part of the advantage of the of this buoy approach is that they can be moved from one location to another as the needs change, or if the radars aren’t being impacted as much as originally anticipated. Using a network of buoys allow you to determine how much the wind farm is really affecting the wave field.
